Product Details

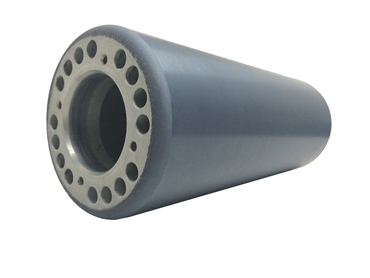

The JemmTron™ CRC100 Conductive Ceramic Roller Covering is ideal for corona treater designs that incorporate ceramic electrodes and a plain bare ground roller. JemmTron™ CRC100 provides excellent resistance to ozone, which prevents the normal oxide build up that occurs with plain metal rollers. In addition, this conductive covering provides excellent resistance to cuts and wear, which reduces the likelihood of the roller surface causing any unwanted backside treat issues or marring of the substrate. This covering is recommended when substrates being treated are electrically conductive.
Technical Specifications
| Release Properties |
Poor |
| Traction Properties |
Good |
| Heat Resistance |
400°F |
| Wear Resistance |
Excellent |
| Hardness |
55 RC (Rockwell C) |
| Wall Thickness |
.005" to .010" |
| Surface area required per KW |
100 square inches per KW |
| Available Lengths |
Up to 350" |
| Available Diameters |
Up to 48" |
| FDA Compliant |
No |
Technical Data
| Dielectric Constant |
Conductive |
| Resistance to Ozone |
Excellent |
| Dielectric Strength |
Conductive |
| Cut Resistance |
Excellent |
| Max. Continuous Operating Temperature |
400° F |
| Short Term Max. Temperature |
450° F |
Roller Covering Pricing
JemmTron™ Ceramic Roller Coverings are sprayed directly on your existing roller or can be sprayed on a new Jemmco Idler Roller. For pricing, please click Add to Quote above or call us at 262-512-9559.
Installation
JemmTron™ Ceramic Roller Coverings are sprayed directly on your new or existing idler roller in Jemmco's manufacturing facility. For more information, please contact your Inside Service Representative at 262-512-9559 or via email at sales@jemmco.com.
